LED DRIVER

ALIMENTATORI D.C. PER TUTTI GLI USI > ALIMENTATORI USCITA FISSA > ALIMENTATORI SWITCHING MEAN WELL ac/dc - dc/dc - dc/ac > AC/DC

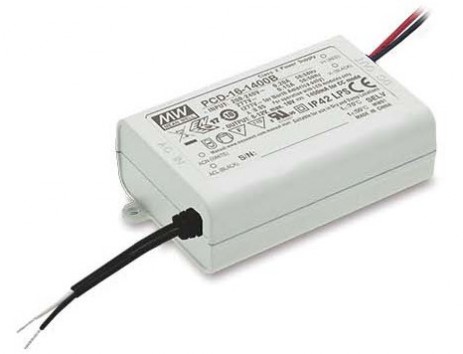

PCD Series
Wattage :
16W~60W
LED DRIVER- PCD Series

Fare sul nome del modello per foglio tecnico

Model
C.C.:PCD-16 / PCD-25 / PCD-40 / PCD-60
Features:
  • 16W/25W: 90~135VAC or 180~295VAC 40W/60W: 180~295VAC
  • AC phase-cut dimming, work with leading and trailing edge TRIAC dimmers
  • Fully isolated plastic case with IP42 level

  • Built-in active PFC function
  • Class II design, without FG
  • Constant current mode
  • Suitable for indoor LED lighting
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PLD Series
Wattage :
16W~60W

LED DRIVER-PLD Series

Fare sul nome del modello per foglio tecnico

Model
C.C.:PLD-16 / PLD-25 / PLD-40 / PLD-60
Features :
  • 16W: 90~135VAC or 180~295VAC
     25W: 90~295VAC
    40W/60W: 180~295VAC
  • Built-in active PFC function

  • Fully isolated plastic case with IP42 level
  • Class II design, without FG
  • Constant current mode
  • Suitable for indoor LED lighting
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PLM Series
Wattage :
12W~40W
LED DRIVER-PLM Series

Fare sul nome del modello per foglio tecnico

Model
C.C.:PLM-12 / PLM-25 / PLM-40
Features:
  • 110~295VAC input (180~295VAC input for E type)
  • Built-in active PFC function
  • Fully isolated plastic case with IP30 level
  • Class II design, without FG

  • Push terminal I/O
  • Constant current mode
  • No load power consumption<0.5W
  • Suitable for indoor LED lighting
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ULP Series
Wattage :
150W
LED DRIVER - ULP Series

Fare sul nome del modello per foglio tecnico

Model
C.V.:
ULP-150
Features:
  • 90~295VAC input, built-in active PFC function
  • High efficiency up to 93%

  • U-bracket low profile: 33mm, suitable for built-in LED lighting systems
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ODL Series
Wattage :
45W~65W
LED DRIVER-ODL Series

Fare sul nome del modello per foglio tecnico

Model
C.C.:ODLC-45 / ODLC-65
Features:
  • Built-in active PFC function
  • Constant current output mode
  • Flicker free design

  • uilt-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )
  • Suitable for indoor LED lighting applications
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
LPF Series
Wattage :
16W~90W
LED DRIVER-LPF Series

Fare sul nome del modello per foglio tecnico

Model
C.V.+C.C.:LPF-16 / LPF-25 / LPF-40 / LPF-60 / LPF-90 / LPFH-60
C.C. (3 in 1 Dimming):LPF-16D / LPF-25D / LPF-40D / LPF-60D / LPF-90D / LPFH-60D
Features:
  • 90~305VAC input, built-in active PFC function (200~400VAC for LPFH-60/60D)
  • Fully isolated plastic case with IP67 level (16W optional)
  • Class II design, without FG

  • Built-in 3 in 1 dimming function for D type (1~10VDC, PWM signal or resistance)
  • Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPF-90/90D & LPFH-60/60D)
  • Suitable for LED lighting and moving sign applications
  • 5 years warranty
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
NPF Series
Wattage :
40W~120W
LED DRIVER-NPF Series

Fare sul nome del modello per foglio tecnico

Model
C.V.+C.C.:NPF-40 / NPF-60 / NPF-90 / NPF-120
C.C. (3 in 1 Dimming):NPF-40D / NPF-60D / NPF-90D / NPF-120D
Features:
  • 90~305VAC input, built-in active PFC function
  • Fully isolated plastic case with IP67 level
  • Class II design, without FG
  • No load/standby power consumption<0.15W (<0.5W for D type)

  • Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off ) for D type
  • Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries [NPF-40(D)/-60(D)/-120(D) only]
  • Suitable for LED lighting and moving sign applications
  • 5 years warranty
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PWM Series
Wattage :
40W~120W
LED DRIVER- PWM Series
Fare sul nome del modello per foglio tecnico

Model
C.V.:PWM-40 / PWM-60 / PWM-90 / PWM-120
Features:
  • 90~305VAC input, built-in active PFC function
  • Fully isolated plastic case with IP67 level
  • Constant voltage PWM style output
  • Class II design, without FG
  • No load power consumption<0.5W

  • Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off)
  • Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (PWM-40/60/120 only)
  • Suitable for LED strip lighting
  • 5 years warranty
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PLC Series
Wattage :
30W~96W
LED DRIVER-PLC Series

Fare sul nome del modello per foglio tecnico

Model
C.C.:PLC-30 / PLC-45 / PLC-60
C.V.+C.C.:PLC-100
Features:
  • 90~264VAC input, built-in active PFC function
  • Fully isolated plastic case with screw terminal style of I/O

  • Suitable for indoor LED lighting and moving sign applications
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
HLN Series
Wattage :
40W~80W
LED DRIVER-PLN Series

Fare sul nome del modello per foglio tecnico

Model
C.V.+C.C.:HLN-40H / HLN-60H / HLN-80H
Features:
  • 90~305VAC input, built-in active PFC function
  • Fully isolated plastic case with IP64 level
  • Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for B type

  • User adjustable output voltage and current level for A type
  • Suitable for indoor LED lighting and moving sign applications
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
LCM Series
Wattage :
25W~60W
LED DRIVER-LCM Series

Fare sul nome del modello per foglio tecnico

Model
3 in 1 Dimming:LCM-25 / LCM-40 / LCM-60
DALI Dimming:LCM-25DA / LCM-40DA / LCM-60DA
Features:
  • 180~295VAC input for 40W/60W, 180~277VAC input for 25W
  • Constant current mode
  • Built-in active PFC function
  • Multiple-stage output current level selectable by DIP switch

  • Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)
  • Built-in DALI interface and push dimming function for DA type
  • Suitable for indoor LED lighting applications
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
LCM-U Series
Wattage :
40W~60W
LED DRIVER - LCM-U Series

Fare sul nome del modello per foglio tecnico

Model
3 in 1 Dimming:LCM-40U / LCM-60U
DALI Dimming:LCM-40UDA / LCM-60UDA
Features:
  • 90~132VAC input only
  • Constant current mode
  • Built-in active PFC function
  • Multiple-stage output current level selectable by DIP switch

  • Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)
  • Built-in DALI interface and push dimming function for DA type
  • Suitable for indoor LED lighting applications
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
IDL Series
Wattage :
45W~65W
LED DRIVER-IDL Series

Fare sul nome del modello per foglio tecnico

Model
C.C.:IDLC-45 / IDLC-65
Features:
  • Built-in active PFC function
  • Constant current output mode
  • Flicker free design

  • Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )
  • Suitable for indoor LED lighting applications
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PLP Series
Wattage :
20W~60W
LED DRIVER-PLP Series

Fare sul nome del modello per foglio tecnico

Model
C.C.:PLP-20 / PLP-30 / PLP-45 / PLP-60
Features:
  • 90~264VAC input (90~277VAC for PLP-20), built-in active PFC function

  • Suitable for built-in LED lighting systems
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
IDP Series
Wattage :
45W~65W
LED DRIVER-IDP Series

Fare sul nome del modello per foglio tecnico

Model
C.C.:IDPC-45 / IDPC-65
Features:
  • Built-in active PFC function
  • Constant current output mode
  • Flicker free design

  • Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )
  • Suitable for built-in LED lighting systems
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
HLP Series
Wattage :
40W~80W
LED SERIES-HLP Series

Fare sul nome del modello per foglio tecnico

Model
C.C.:HLP-40H / HLP-60H / HLP-80H
Features:
  • 90~305VAC input, built-in active PFC function
  • Suitable for built-in LED lighting systems

  • Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
